Subaru AVCS Add-On Engine Wiring Ej205 & Ej207
Engine Add-On Harness Details

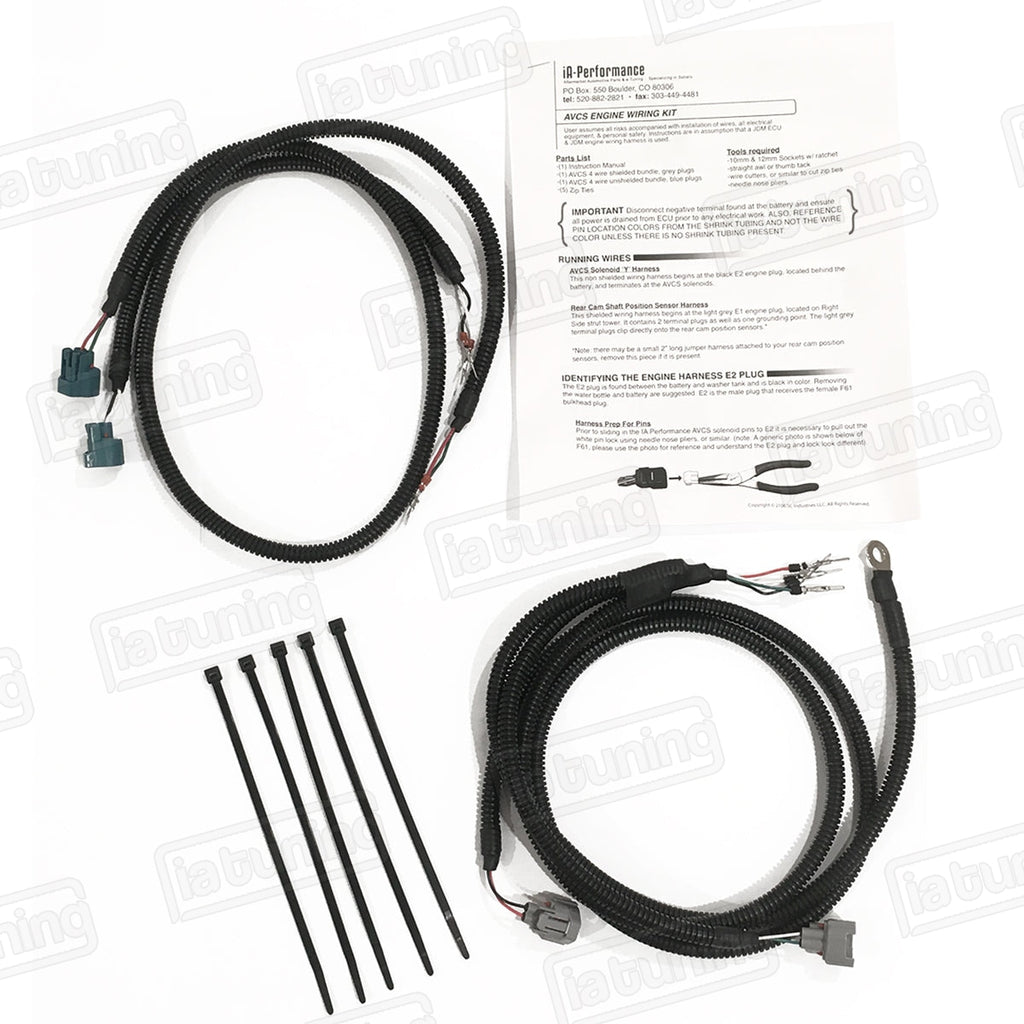

Finally, a wiring kit intended for the novice installer. In the event your JDM 2.0L motor arrived with a cut, or missing, engine harness then rest easy knowing there is a simple add-on solution. Our Add-On Engine Wiring harness is designed to work with (in addition to) a non AVCS WRX engine harness (example: USA 2002-2005 WRX 2.0L harness). Once installed, the wiring will now be complete between the engine bay plugs and both the Rear Cam Sensors and AVCS Intake Solenoids This section of wiring is also called the Motor Harness.
With most things in life there are exceptions. Here is a list of items that must be in place before AVCS will operate in your 2002-2005 WRX:
- Rear cam sensors must be 2 wire, not 3
- Will only work with intake AVCS (aka Single AVCS). Our kit will not support motors with intake & exhaust AVCS (sometimes called dual or quad AVCS).
Since 2004, our wiring kits have met the stringent standards that our clientele have come to expect. If that's not enough, each kit comes with a LIFETIME WARRANTY*!
- EXTREMELY Easy install (see our FAQ for more details).
- 100% Factory fit and finish thanks to OE plugs and terminals
- Constructed of automotive grade, high temp PVC jacketed, copper stranded wiring.
- Zero cutting, soldering, or splicing.
- Each kit is tested and meets strict resistance standards of less than 0.3 OHM.
- The kit install is 100% reversible
* Lifetime Warranty is valid to the original purchaser and is non transferrable.
Custom Wiring Available
Upon request, we offer custom wiring kits, including different plugs and/or wire lengths for popular builds such as:
- Factory Five 818 S, R, & C
- Stand Alone EMS computers (Hydra, AEM, Link, etc)
- Right Hand Drive vehicles
Q1) I'm not a wiring person. In fact, I can barely change a battery. Will I be able to install this kit on my own?
This is quite possibly the easiest wiring kit you'll even install. Each kit includes a fully illustrated (pictures) install guide and factory connectors. Example: Insert the green wire into the #4 plug slot. All you're doing is matching wire colors to clearly marked plug numbers. When in doubt, please consult with us or a local install professional.
Q2) How long does the kit take to install?
Average install time is 10-30 minutes. Quite possibly the fastest and easiest wiring kit you'll ever encounter!
Q3) Does this Add-On kit replace my engine harness or does it work in addition to it?
As the title eludes, this is an Add-on kit, intended to be used with a non AVCS ej205 engine harness. The combination of the 2 harnesses create a complete AVCS engine harness. (example: USDM 2003 WRX engine harness + iaTUNING add on harness = AVCS engine harness)
Q4) Does this kit accommodate the IAT sensor found on the version 8 & 9 ej207?
No, this kit does not address the IAT sensor wiring.
Q5) Does this kit work on RHD cars too?
Yes, this kit is compatible with both RHD and LHD models (ambidextrous)
Q6) What is the difference or an Engine and Bulkhead Harness?
Often called the Chassis Harness, this is the large harness that runs from the ECU, across the firewall, and ends at the Black/Brown plugs behind the battery as well as the Grey plug on the passenger side strut tower. The Bulkhead harness terminates in the engine bay and does not connect to the sensors on the motor. Rather, the Engine harness plugs into the sensors. Every US 2002-2005 WRX comes with a bulkhead harness from the factory, but the US cars do not include AVCS wiring, which is where our kit comes into play.
The Engine Harness starts under the hood and continues across the motor, ultimately connecting to the coil packs, injectors, throttle body, etc. It resides underneath the intake manifold and has 3 main male plugs to it. If, for some reason, the used JDM motor arrives with cut plugs (not uncommon) then you will want to purchase our AVCS Engine Harness which will convert your Stock US ej205 Engine Harness into a JDM Engine Harness. Alternatively, if you do not have a stock US ej205 Engine Harness to start with, then we also sell a Complete JDM Engine Harness.
Every kit includes a fully illustrated install guide which turns a daunting task into a simple install. If you can change your own battery, then you can definitely install this kit!
Lost your instructions?
Don't worry, just send us an email with your First and Last Name and we'll send over a copy. Keep in mind, the install guides are intended for the original owners.
